TUBULAR RUNNING SERVICES

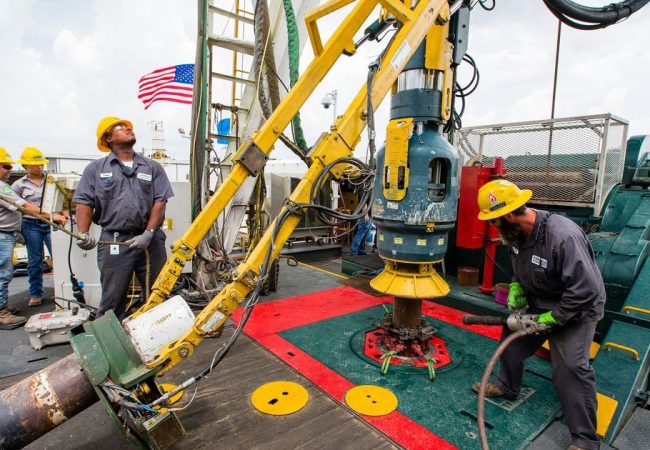

Power tong systems

Pacific Oil & Energy Group (POEG) and its associated companies operate a full line of Tubular Running tools and equipment to meet our clients’ most challenging jobs.  Our power tong systems are manufactured by industry leaders to our own exact specifications.  With power tongs ranging from 2 3/8” 6,000 ft/lbs to 20” 50,000 ft/lbs, we are able to meet every customer’s specific requirements.  All power tongs are fitted with door safety inter-locks and tubing tongs with integral back-up systems ensuring optimum connection make-up.
Technical Specifications
  • 3 1/2” to 35,000 ft/lbs
  • 5 1/2” to 35,000 ft/lbs
  • 7 5/8” to 35,000 ft/lbs
  • 8 5/8” DP to 35,000 ft/lbs
  • 10 3/4” to 35,000 ft/lbs
  • 13 5/8” to 35,000 ft/lbs
  • 14” to 35,000 ft/lbs (DP & Csg)
  • 16” to 50,000 ft/lbs
  • 18 5/8” to 50,000 ft/lbs
  • 20” to 50,000 ft/lbs
Torque Monitoring Systems

We operate a full line of Tubular Running tools and equipment to meet our clients’ most challenging jobs.  Our power tong systems are manufactured by industry leaders to our own exact specifications.  With power tongs ranging from 2 3/8” 6,000 ft/lbs to 20” 50,000 ft/lbs, we are able to meet every customer’s specific requirements.  All power tongs are fitted with door safety inter-locks and tubing tongs with integral back-up systems ensuring optimum connection make-up. Our Tubular Services offer the latest in OCTG Analysis Systems developed by superior engineers to control, analyze, and record the make-up of premium and API tubular connections.  It is a key element in our approach to ensure joint integrity for all types of tubulars by displaying the make-up information in real time color graphics.  The powerful electronics ensure the highest levels of precision and speed of response, preventing under or over-torqueing.
Technical Specifications
  • Design: Built for the harsh environment of the rig floor
  • Certification: Fully certified for Zone 1 requirements
  • Turns Counter: Measures to 1/1000th of a turn as a minimum
  • Dump System: Electro-Hydraulic system ensuring high speed response
  • Screen: High resolution screen for clear display of information
  • Operation: Windows based operating system for all functions
  • Make-up Data: Instant recall of historical make-up data
  • Load Cell: Compression and Tension style load cells are available for use with the system
Grit Face Dies & Insert

Our Tubular Services offer a full range of Gritface dies and inserts for both our power tongs and handling tools ranges. Knowledge that regular carbon steel contact and deep penetration of chrome tubulars is detrimental to the working life of the CRA completion or liner, the Gritface system was developed as an integrated CRA running system that offers handling and make-up without leaving die marks.

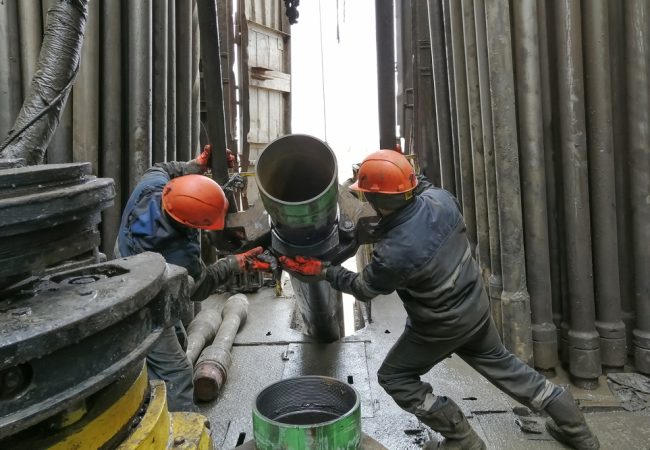

Offshore oil rig worker prepare tool and equipment for perforation oil and gas well at wellhead platform. Making up a drill pipe connection. A view for drill pipe connection from between the stands
Power Packs
  • Our Tubular Services offer a full range of power pack systems manufactured by industry leaders to meet the highest levels of environmental performance.



  • TECHNICAL SPECIFICATIONS

    • Pump: Variable Displacement
    • Engine: Iveco 7450L Diesel
    • Motor: Eexd 37kw Electric Motor
    • Engine: Deutz 4 or 6 cyl Diesel
    • Output: 47GPM @ 2400psi
    • Starter: Spring Starter

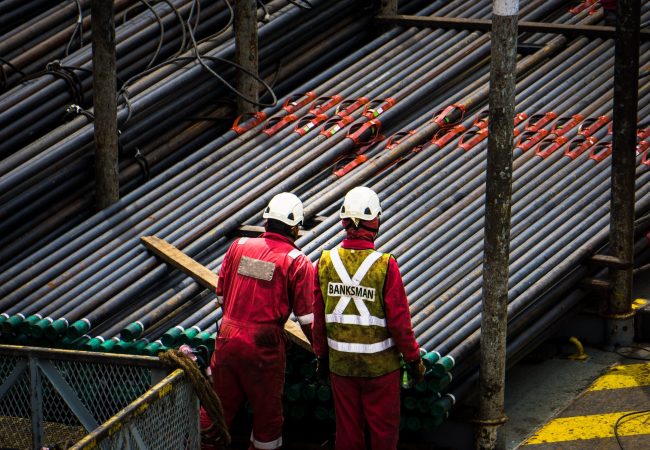

Casing & Tubing Handling Equipment

Our full fleet of handling tools and accessories can handle all sizes of tubing and casing.

Technical Specifications

  • Flush Mounted Spiders
  • 750/500 & 350 Ton Air Operated Spider/Elevators
  • Hinged Spider and Bowls
  • Side Door and Slip Type & Single Joint Elevators
  • Manual Rotary Slips
  • Manual Casing & Tubing tongs
  • Safety clamps
  • Stab-in Guides
  • Clamp on Thread Protectors
  • Fill up & Circulate Tools
  • False Rotary Tables
  • C-Plates
  • Insert Bowls and Casing Bushings
Fill & Circulate Tool (FAC Tool)

We offer Operators the safest and most efficient means to fill or circulate casing strings at desired rates as they are being run.  In the fill position, fluid is pumped through the mandrel and the mud saver valve as the casing is being lowered into the well.  In the circulate position, the sealing element, slightly larger than the ID of the casing, is lowered into the casing and forms a seal between the FAC Tool and the casing.  Pressure applied to the casing for the fluid circulation causes the fluid to enter an area behind the sealing element, energizing it to seal against fluid by-pass.

Features Include

  • Fluid pressure-energized sealing element.
  • Tapered aluminum gauge ring below the sealing element protects against thread damage and acts to centralize the tool in the casing.
  • Mud-saver valve retains the static head of the mud and prevents the mud from dripping onto the rig floor as the tool is being raised into the derrick.
  • Flexible steel-reinforced rubber hose with brass guide cone gives added flexibility for inserting the FAC Tool into the casing.
  • Rubber insert or guide cone absorbs impact blows to casing during stabbing, filing, and circulating.
  • Reverse flow through the check valve allows any pressure trapped below the FAC Tool to be released prior to removal from casing.
  • No “hands-on” manipulation of the FAC Tool is required to change from the fill to the circulate mode, or vice versa.
  • The sealing element is easily changed by a single break at the retainer sub.
  • The same basic tool body can be adapted for use with several sizes of casing strings by changing the seal retainer ring, sealing element, and gauge ring.
